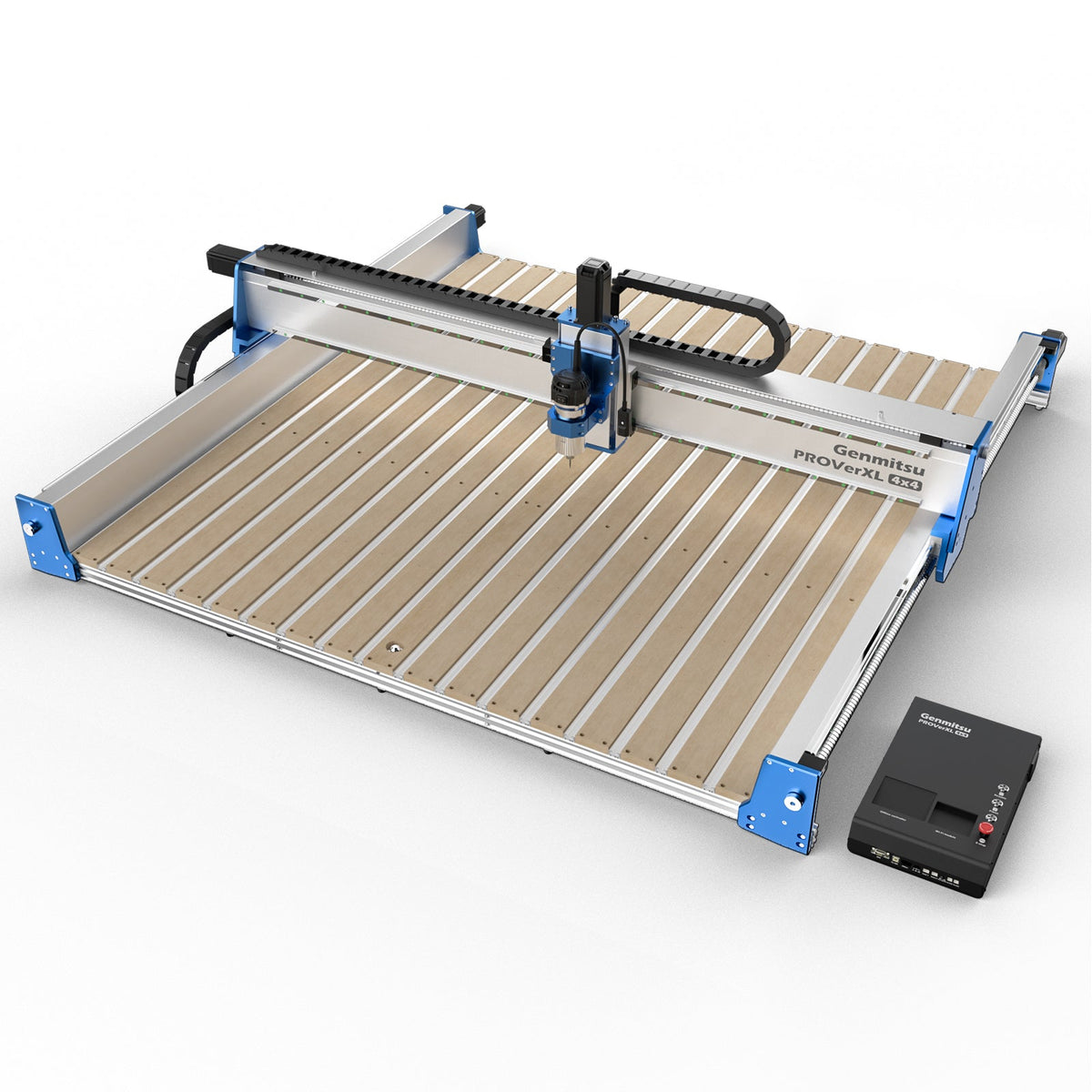

Genmitsu PROVerXL 4x4 CNC Router – Large-Format Precision Cutting & Engraving Machine

Genmitsu PROVerXL 4x4 CNC Router – Large-Format Precision Cutting & Engraving Machine

Regular price $3,999.00 USD
Regular price $4,499.00 USD Sale price $3,999.00 USD
Sale Sold out
Shipping calculated at checkout.
Overview ▾

Big Ideas Deserve a Bigger Workspace.

Bring large-scale creativity to your workshop with the Genmitsu PROVerXL 4x4 CNC Router, a powerful precision machining solution designed for woodworkers, professional makers, and growing creative businesses. Featuring an expansive 1300 × 1300mm working area, a rigid metal frame, closed-loop stepper motors, and a precision ball screw drive system, this advanced CNC machine is built to tackle everything from custom signage and decorative panels to furniture components and detailed woodworking projects.

Engineered for accuracy, stability, and versatility, the PROVerXL 4x4 combines dual linear guides, wireless app connectivity, and an expandable design that supports an optional dual Z-axis configuration. Whether you're producing one-of-a-kind creations or scaling up small-batch production, this machine offers the space and flexibility to bring ambitious projects to life.

Software Options: Available in three configurations: Machine Only, Machine + Vectric VCarve Desktop, or Machine + Vectric VCarve Pro. Vectric software is included only with the designated software bundles and is not included with the standard Machine Only configuration.

Spindle Notice: The 710W spindle shown in product photography is not included with the standard machine. A compatible spindle or router must be purchased separately.

View full details
  • Features
  • Specs
  • Certification
  • User Manual
  • Expansive 4x4 Working Area: Generous 1300 × 1300mm machining space accommodates large signs, furniture components, decorative panels, and oversized woodworking projects.

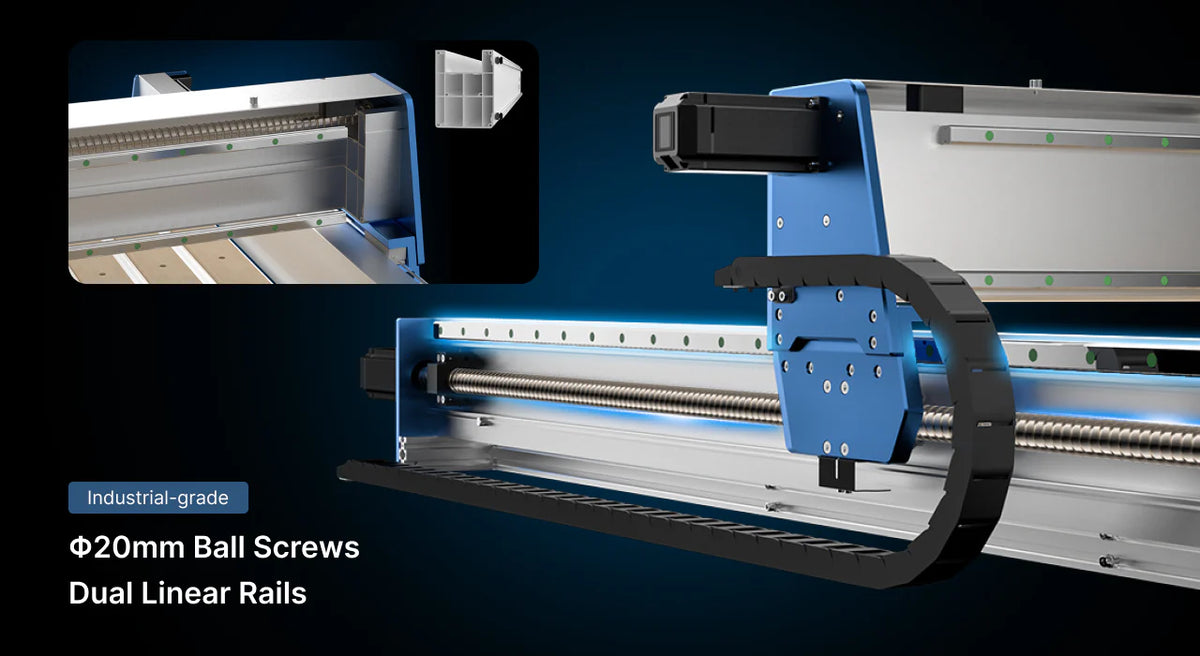

  • Precision Ball Screw Drive System: Heavy-duty ball screws deliver smooth, stable, and accurate machine movement.

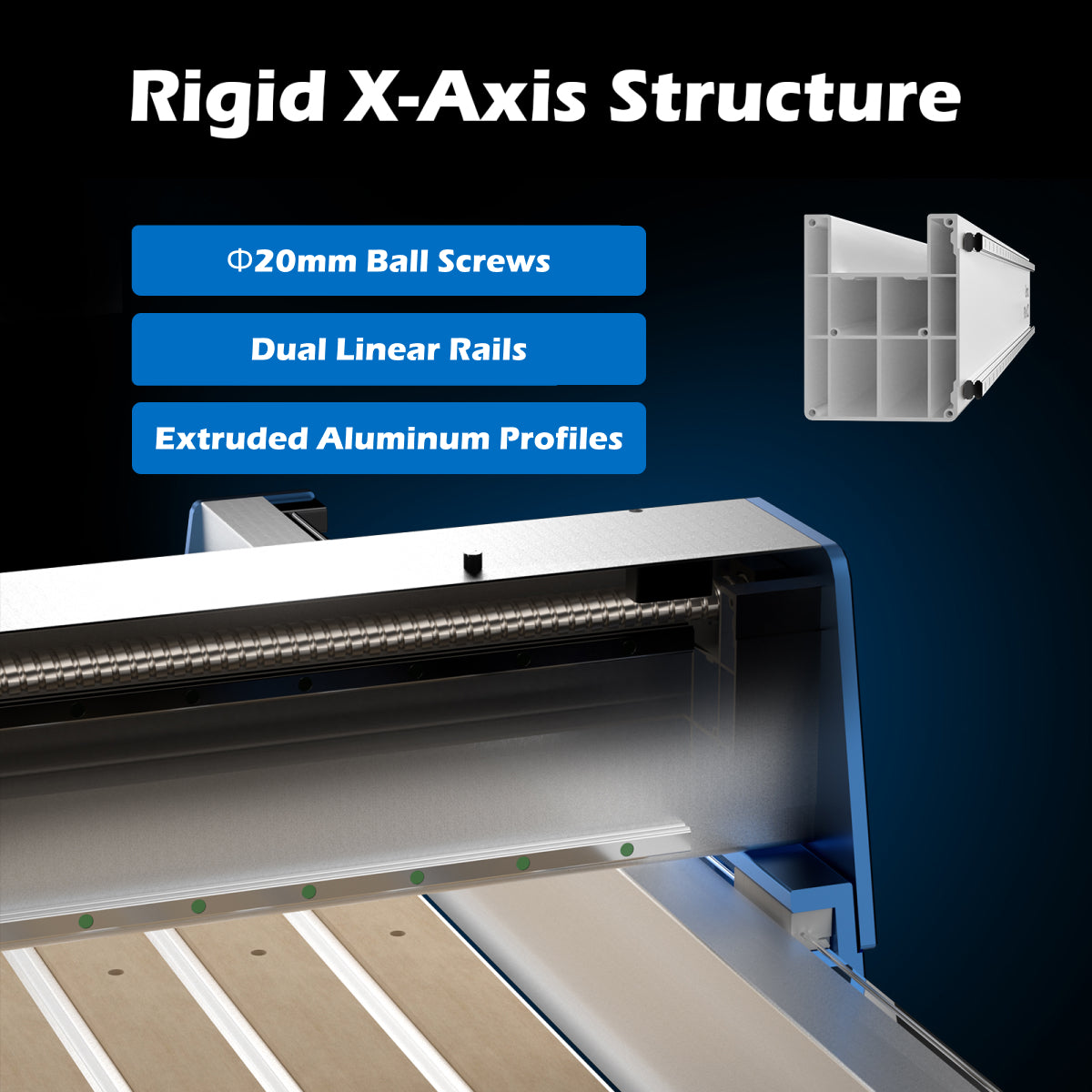

  • Dual Linear Rail Construction: Reinforced motion system improves rigidity and consistency during detailed cutting and engraving.

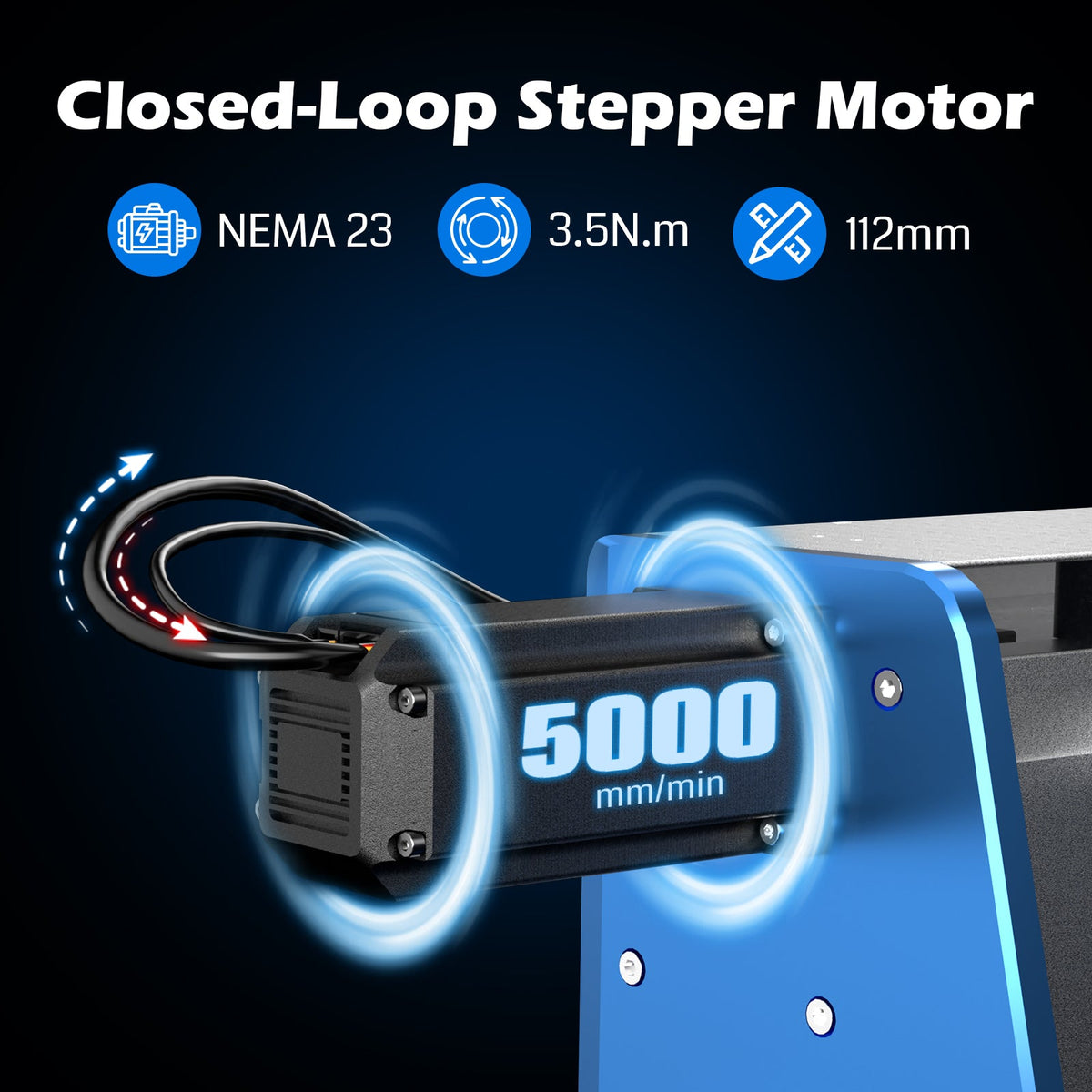

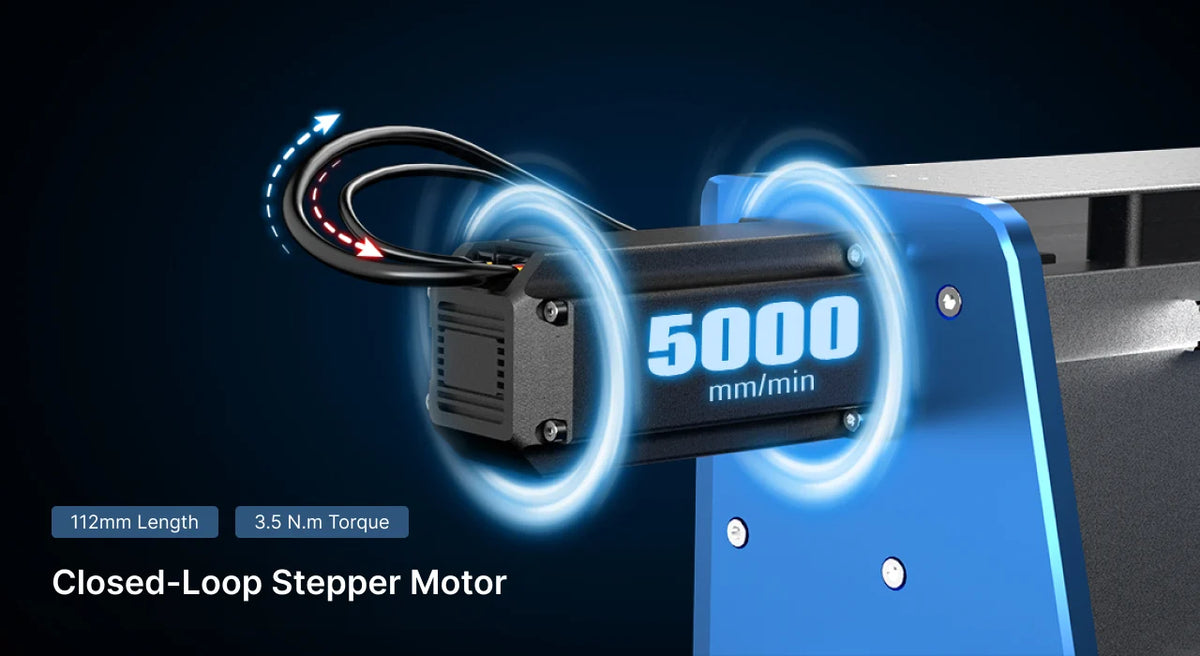

  • Closed-Loop Stepper Motors: Four NEMA 23 closed-loop motors on the X and Y axes use position feedback to help prevent lost steps.
  • High-Speed Performance: Maximum travel speed of 5000mm/min supports efficient machining workflows.
  • Powerful Motor Torque: Stepper motors deliver up to 3.5 N·m of torque for controlled movement.

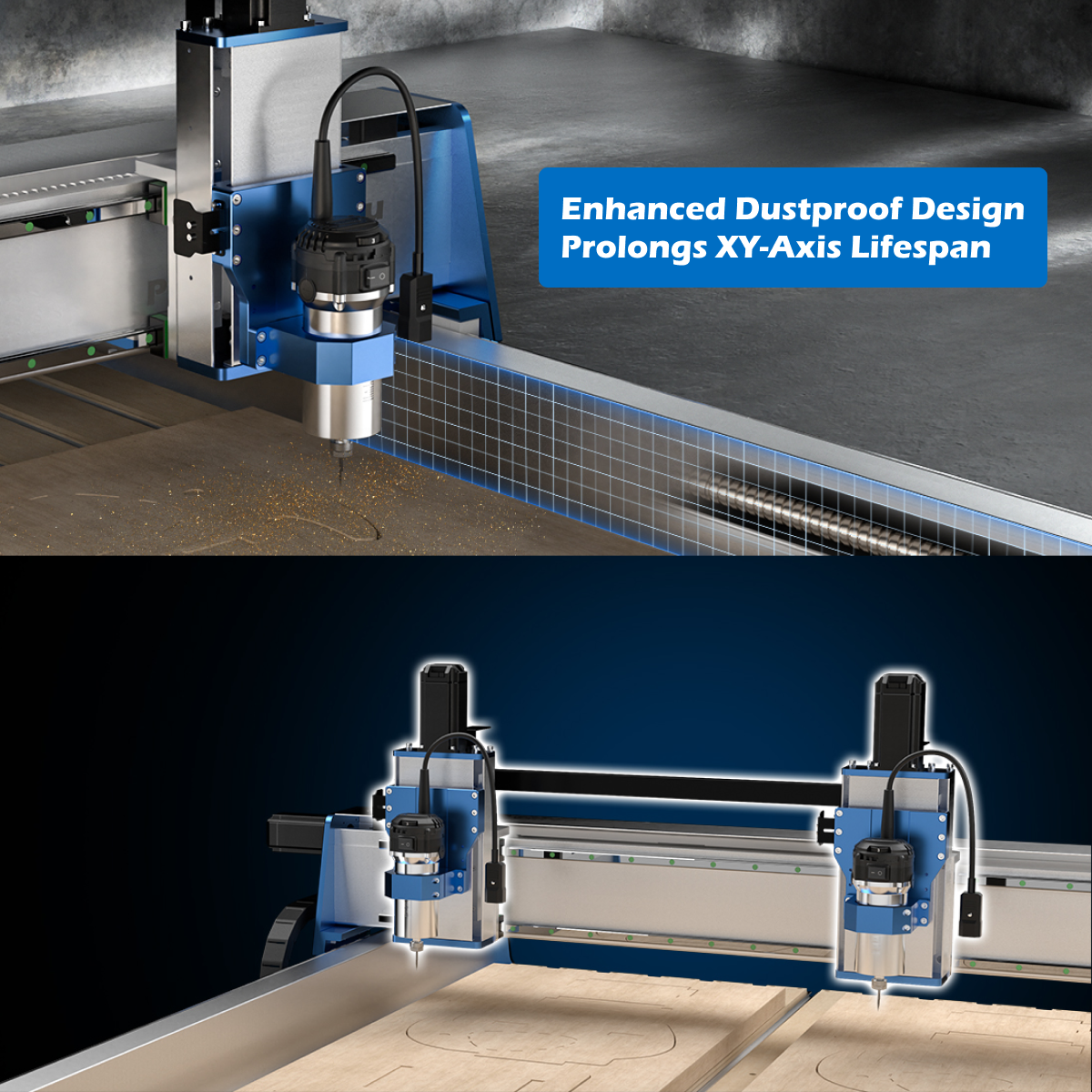

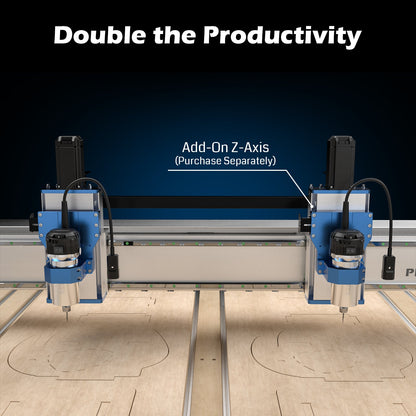

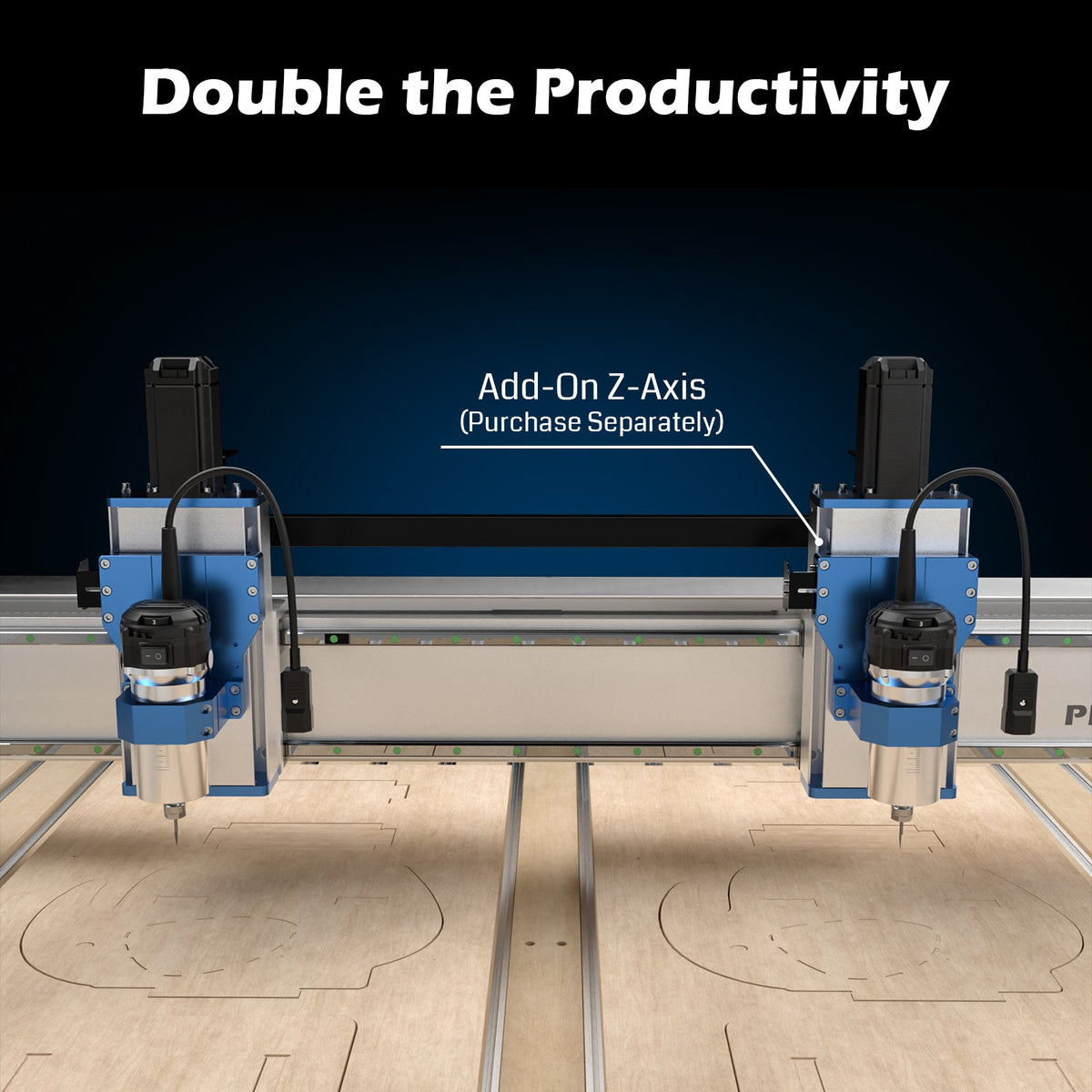

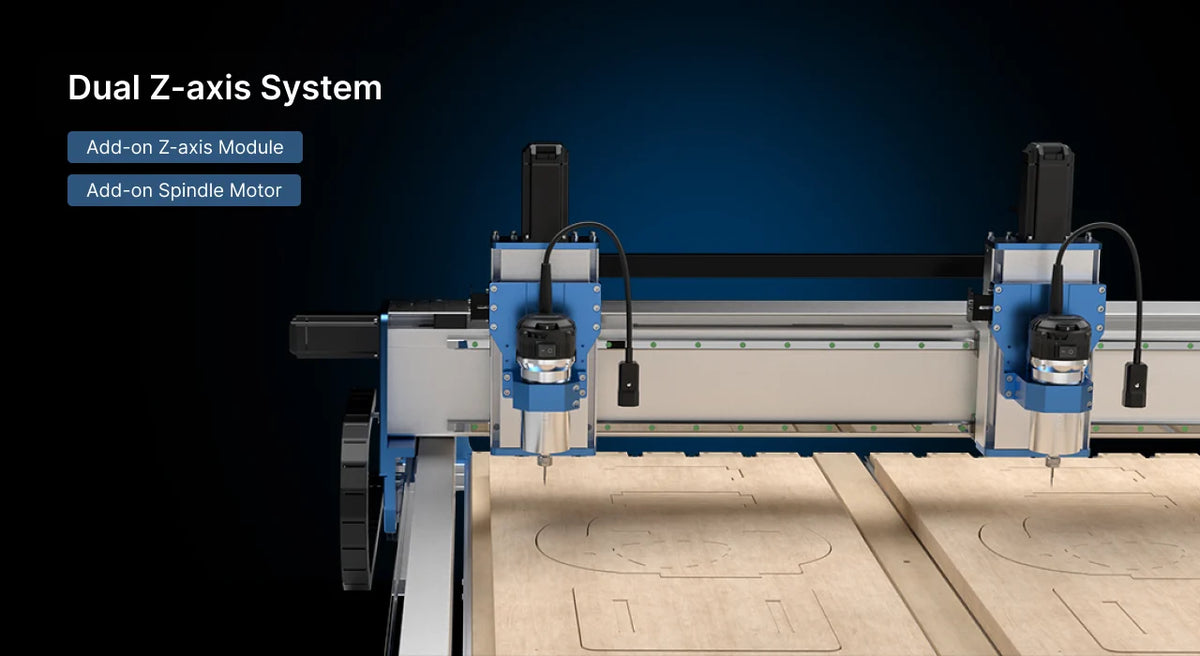

  • Optional Dual Z-Axis Capability: Supports two spindle or trim-router positions for greater machining flexibility. Additional hardware may be required.
  • Rigid Metal Frame: Reinforced aluminum construction provides a stable foundation for larger projects.

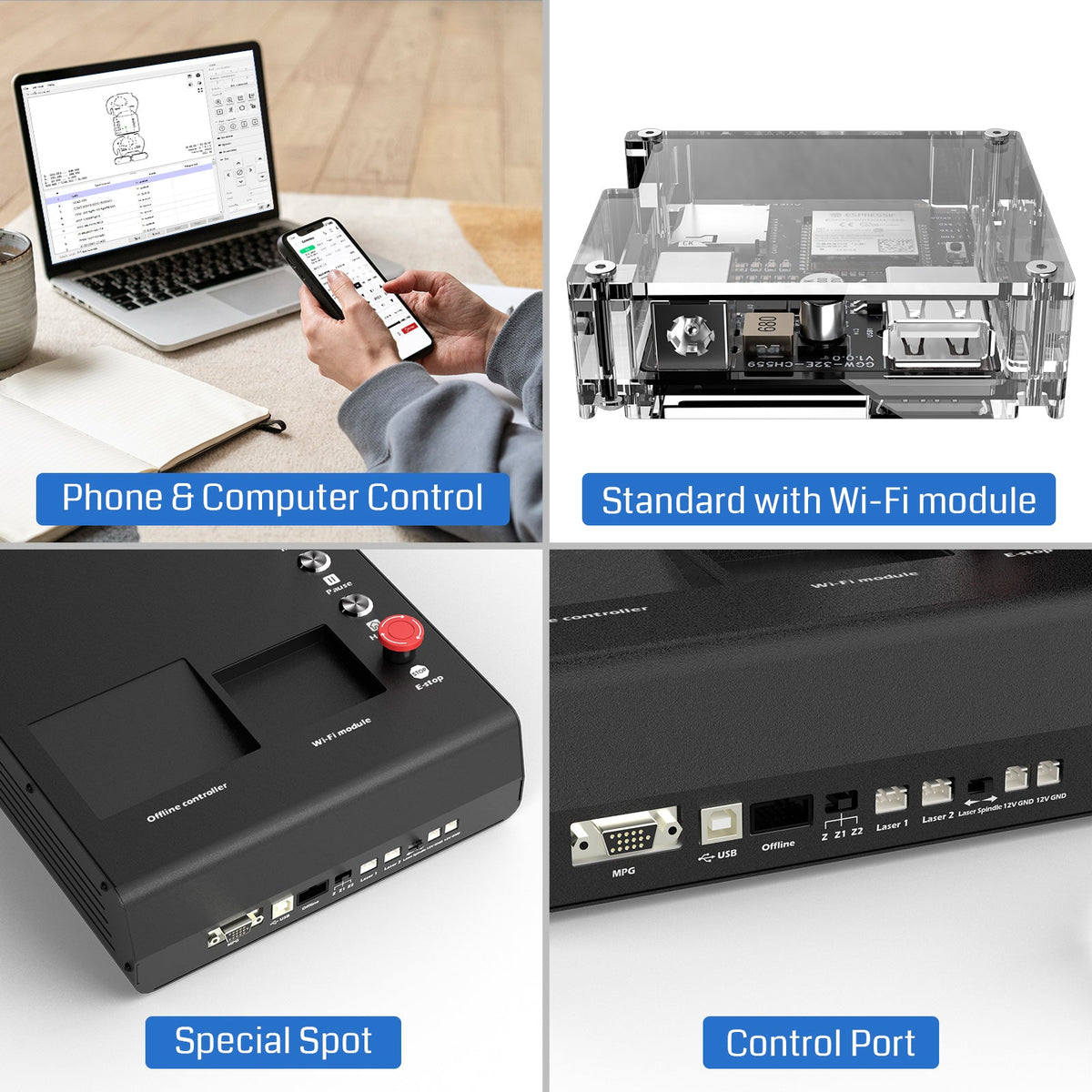

  • Wireless App Control: Built-in Wi-Fi enables compatible Genmitsu app operation.
  • Advanced 32-Bit Controller: Modern processing system supports responsive CNC operation.

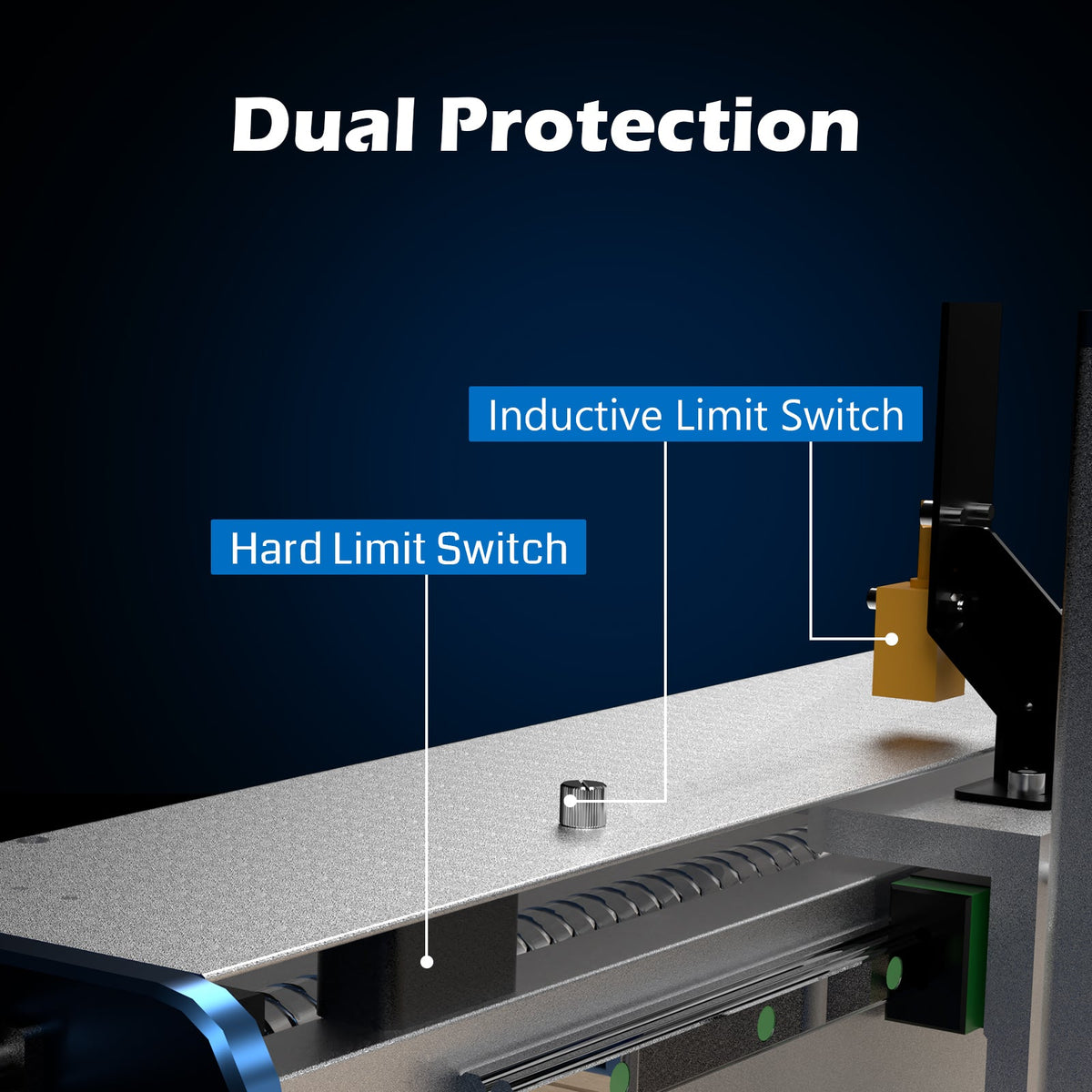

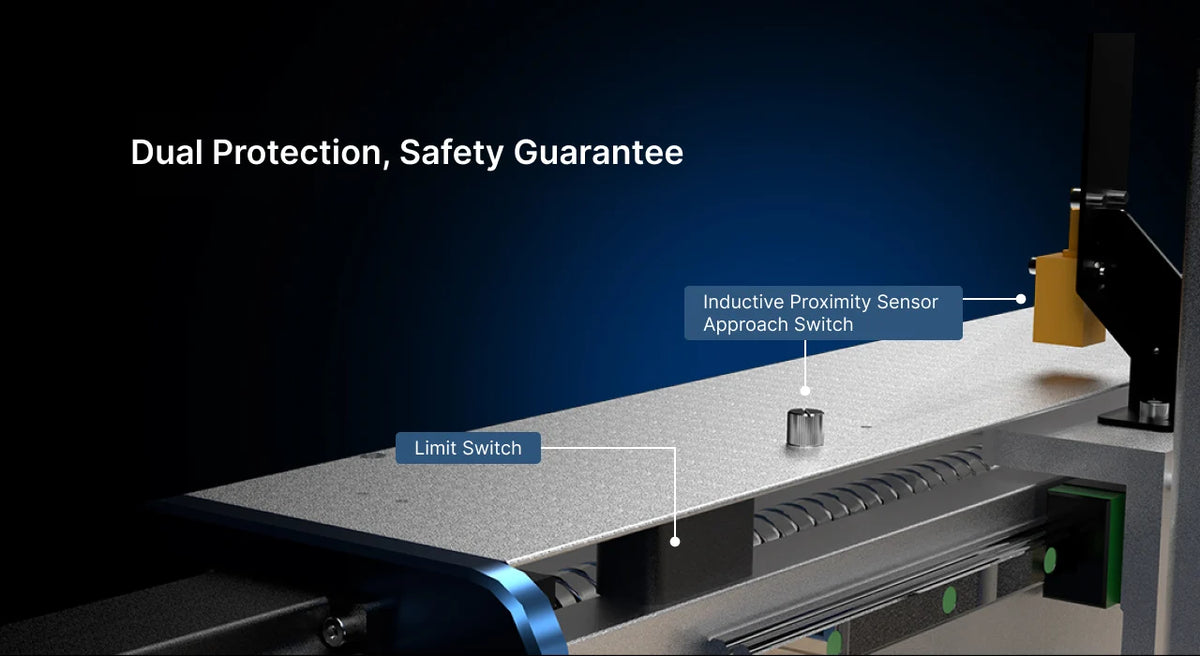

  • Safety-Focused Design: Limit switches and an emergency stop help protect the machine during operation.
  • Versatile Material Applications: Suitable for woodworking, plastics, and compatible soft-metal machining with appropriate tooling.
  • Optional Vectric Software Bundles: Choose a package with VCarve Desktop or VCarve Pro for expanded design and toolpath capabilities.
  • Small-Business Production: Ideal for custom woodworking, signage, furniture-making, and repeatable creative projects.
Genmitsu PROVerXL 4x4 CNC Router – Large-Format Precision Cutting & Engraving Machine
Genmitsu PROVerXL 4x4 CNC Router – Large-Format Precision Cutting & Engraving Machine
Genmitsu PROVerXL 4x4 CNC Router – Large-Format Precision Cutting & Engraving Machine
Genmitsu PROVerXL 4x4 CNC Router – Large-Format Precision Cutting & Engraving Machine
Genmitsu PROVerXL 4x4 CNC Router – Large-Format Precision Cutting & Engraving Machine
  • Product Name: Genmitsu PROVerXL 4x4 CNC Router
  • Brand: Genmitsu
  • Model: PROVerXL 4x4
  • Machine Type: Large-Format CNC Router / Cutting & Engraving Machine

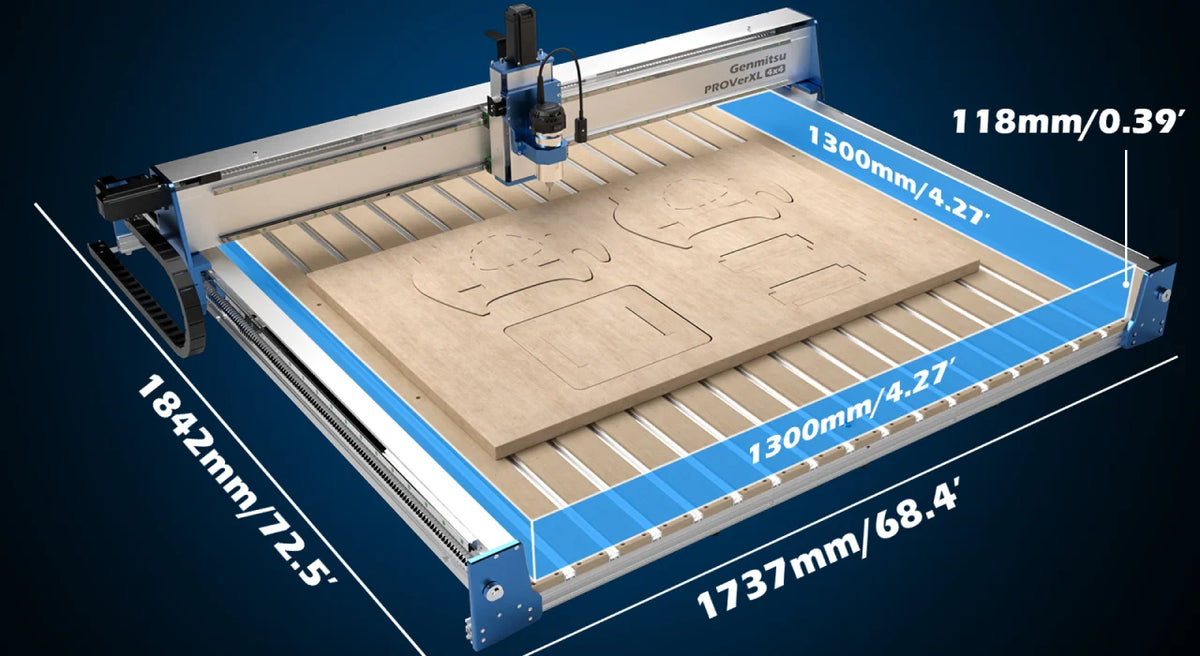

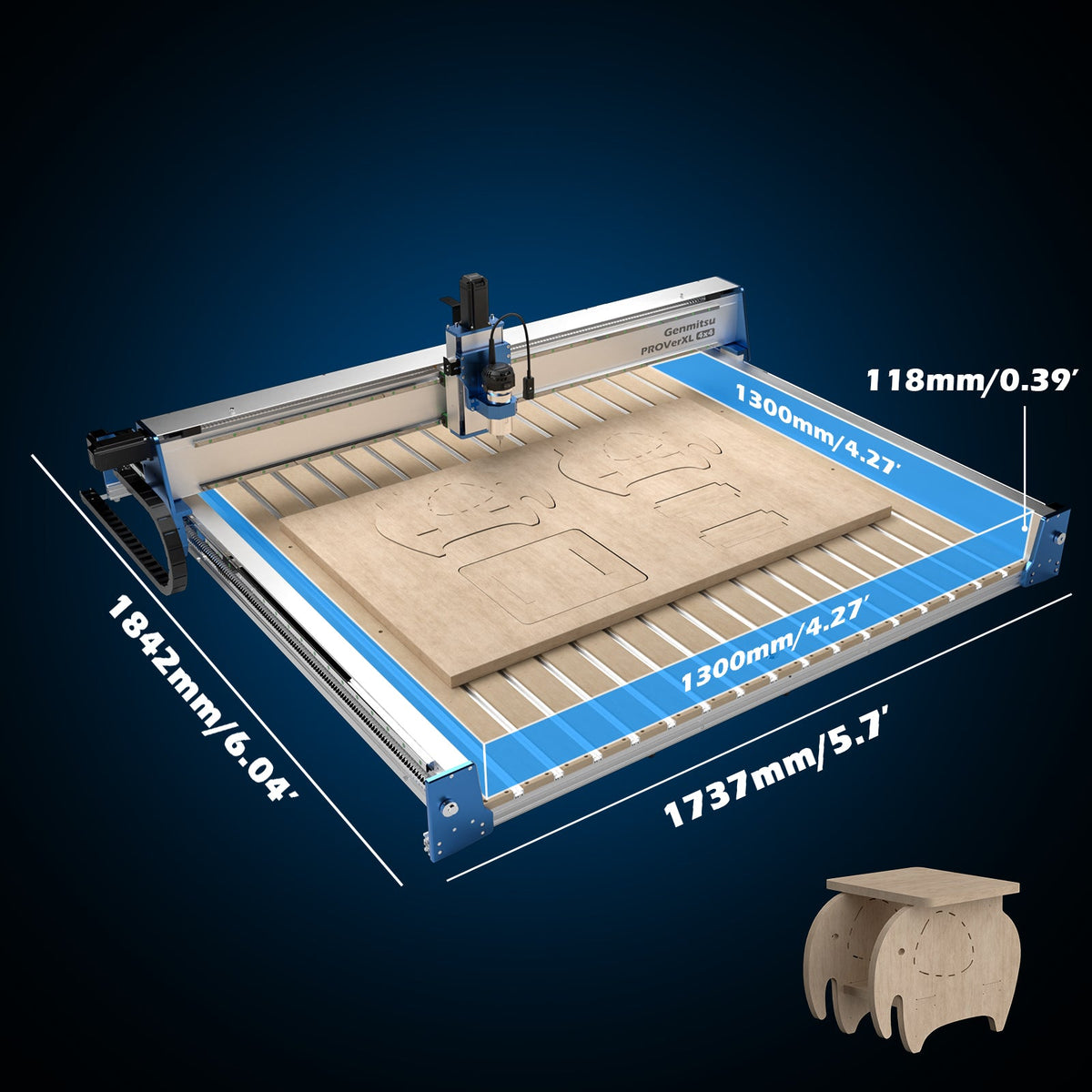

  • Single Z-Axis Working Area: 1300 × 1300 × 118mm (51.18" × 51.18" × 4.65")
  • Dual Z-Axis Working Area: 600 × 1300 × 118mm (23.62" × 51.18" × 4.65")
  • Overall Dimensions: 1893 × 1842 × 617mm (74.53" × 72.52" × 24.29")
  • Frame Construction: Metal Frame

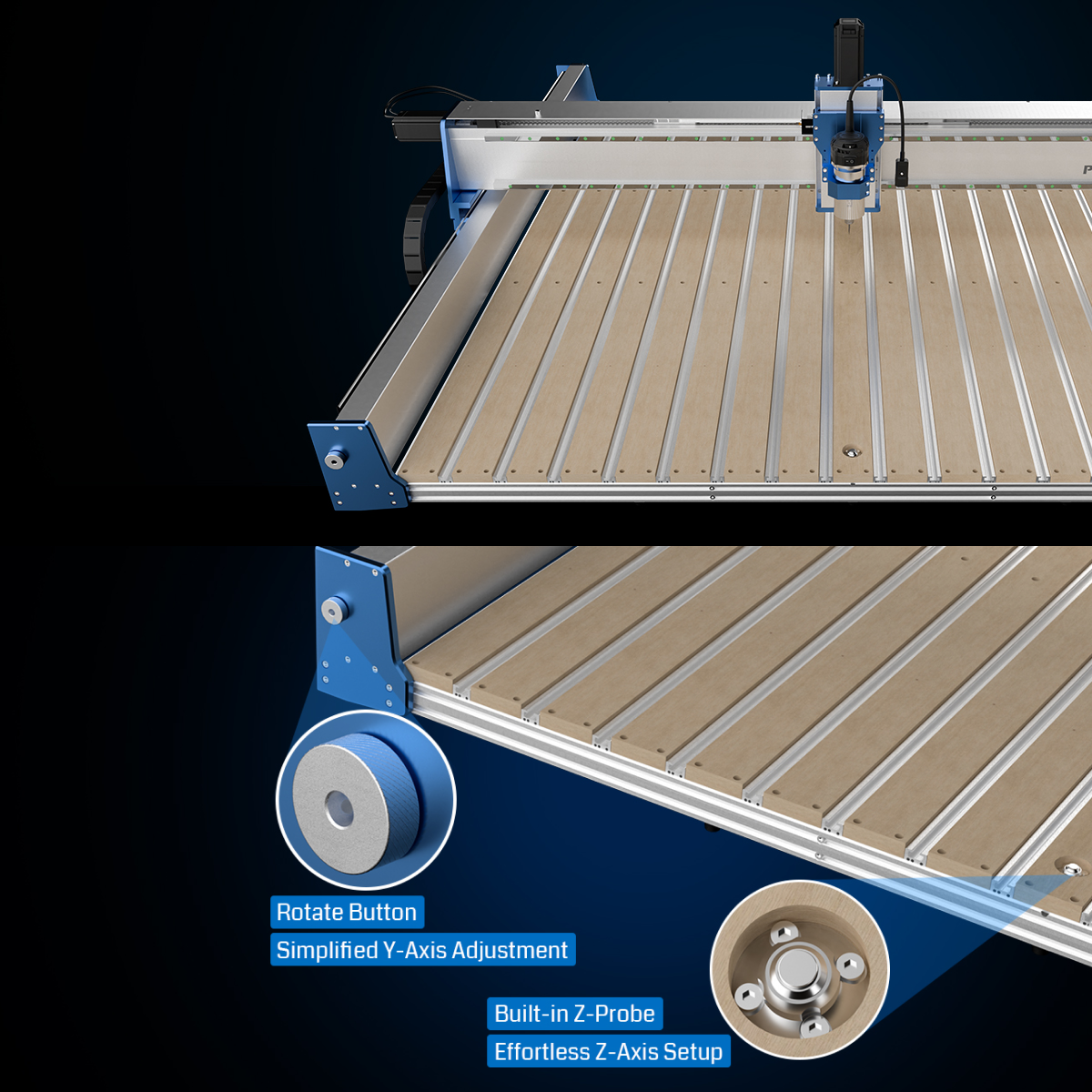

  • Worktable: Hybrid Spoilboard
  • Drive System: Precision Ball Screws

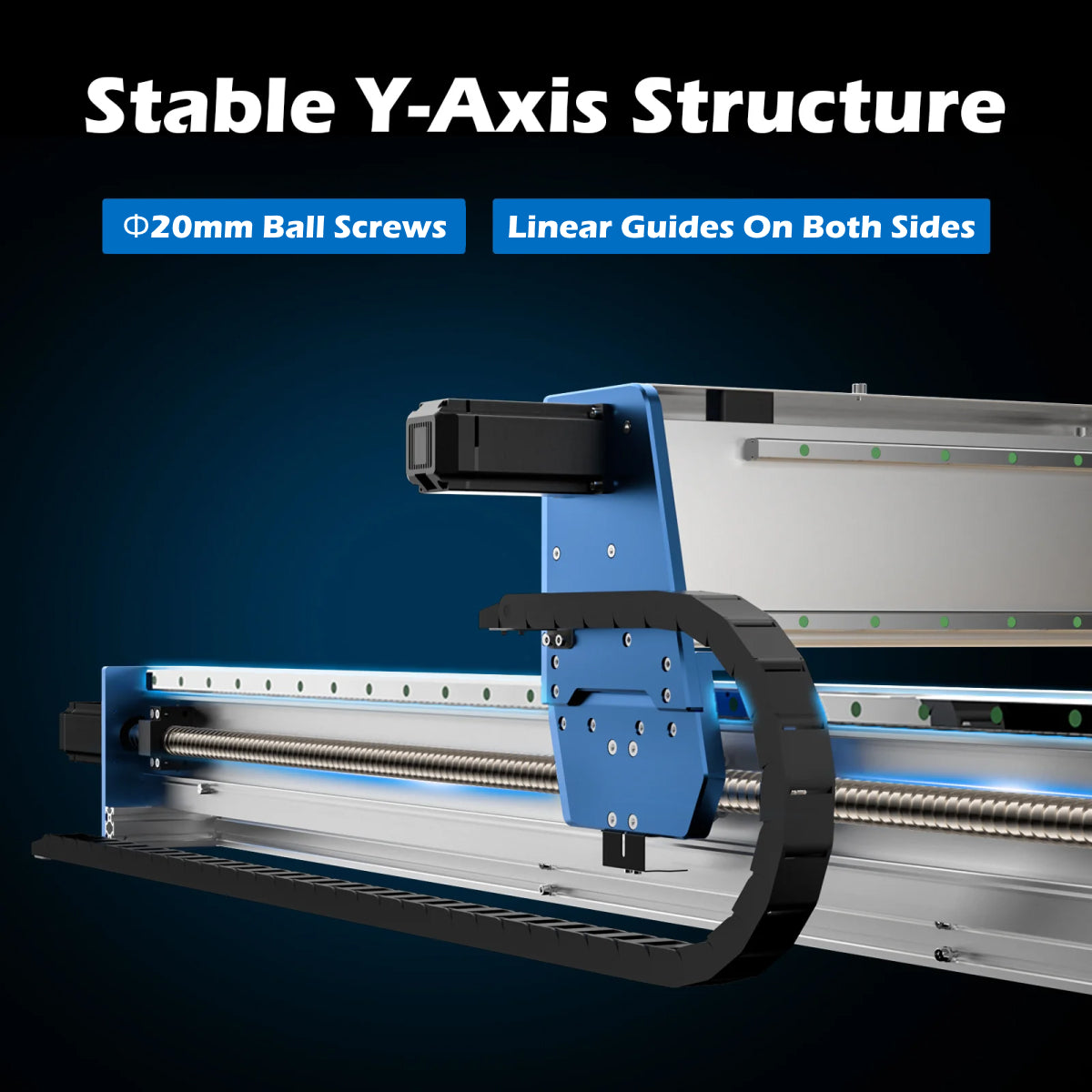

  • X-Axis Ball Screw: 20mm Diameter
  • Y-Axis Ball Screw: 20mm Diameter
  • Z-Axis Ball Screw: 12mm Diameter
  • Linear Guides: Y-Axis HG20 / X-Axis HG15 / Z-Axis HG15
  • Stepper Motors: NEMA 23 Closed-Loop
  • X/Y Stepper Motor Quantity: 4
  • Maximum Motor Torque: 3.5 N·m
  • Maximum Travel Speed: 5000mm/min
  • Controller: 32-Bit MCU
  • Firmware Compatibility: GRBL 1.1h
  • Compatible Control Software: GRBL-Based Software, Including Candle and UGS
  • Wireless Control: Genmitsu App via Wi-Fi
  • Dual Z-Axis Support: Yes, Optional Configuration

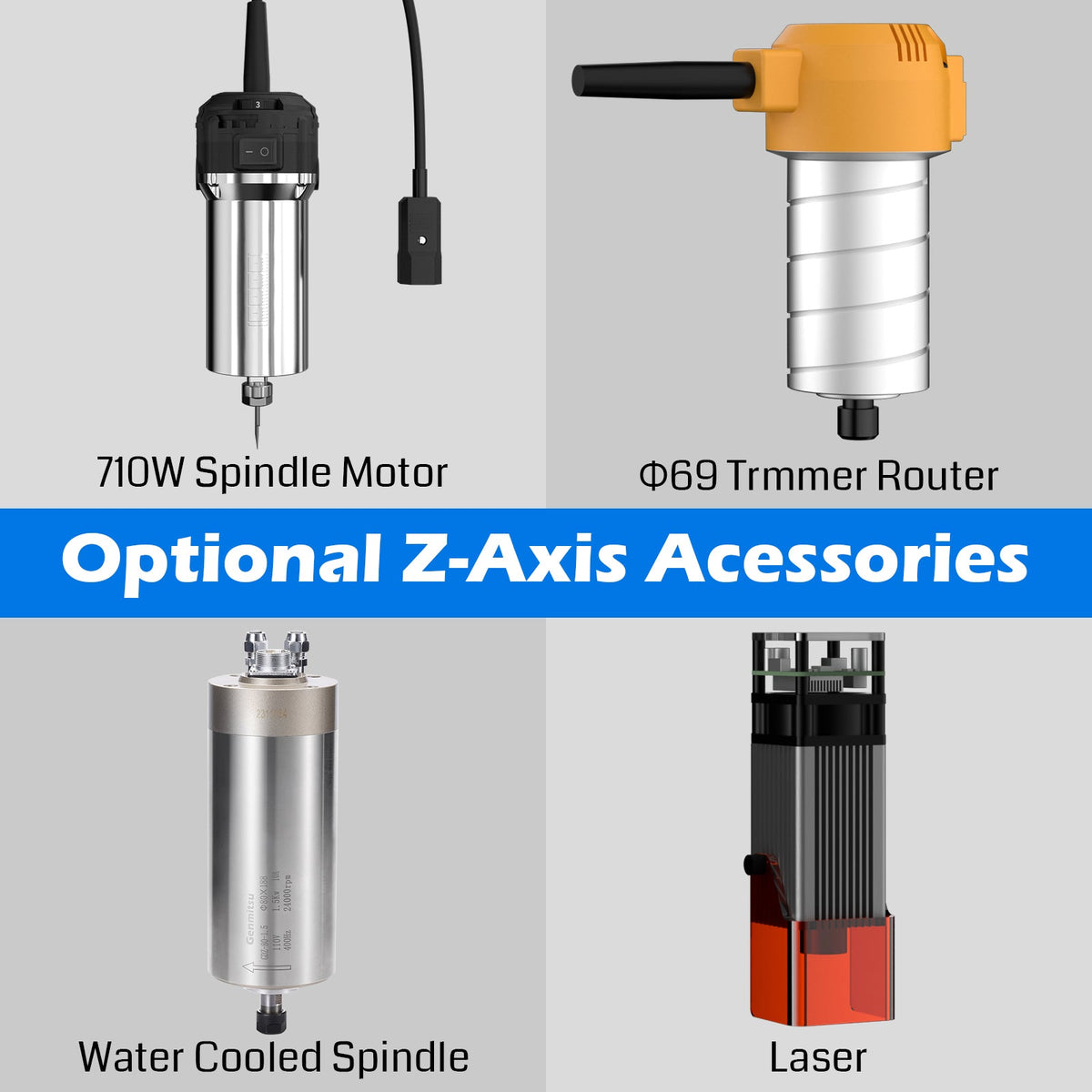

  • Spindle Compatibility: 710W AC Spindle or Optional 1.5–2.2kW Water-Cooled Spindle
  • Spindle Included: No, Sold Separately
  • Safety Features: XYZ Limit Switches and Emergency Stop Switch
  • Power Supply: AC 110/230V Switchable
  • Machine Weight: Approximately 330.7 lbs (150kg)
  • Available Packages: Machine Only / Machine + VCarve Desktop / Machine + VCarve Pro
  • Vectric Software Included: Only with Selected Software Bundle
  • Primary Applications: Woodworking, CNC Cutting, Carving, Engraving, and Small-Batch Production
  • USA Machine-Only SKU: GM-4X4-U2-AJ
  • USA VCarve Desktop SKU: GM-4X4-VU2-AJ
  • USA VCarve Pro SKU: GM-4X4-VPU2-AJ
