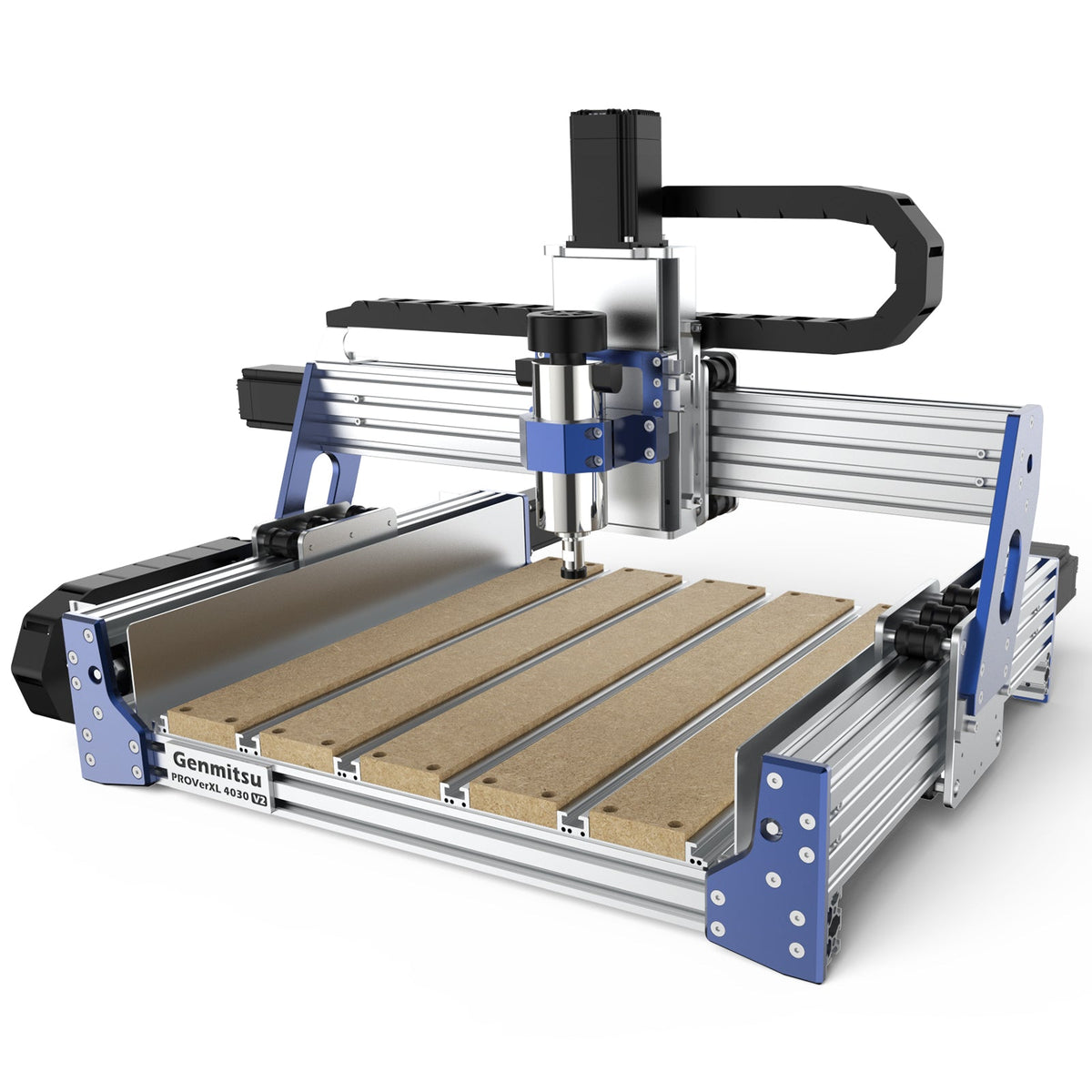

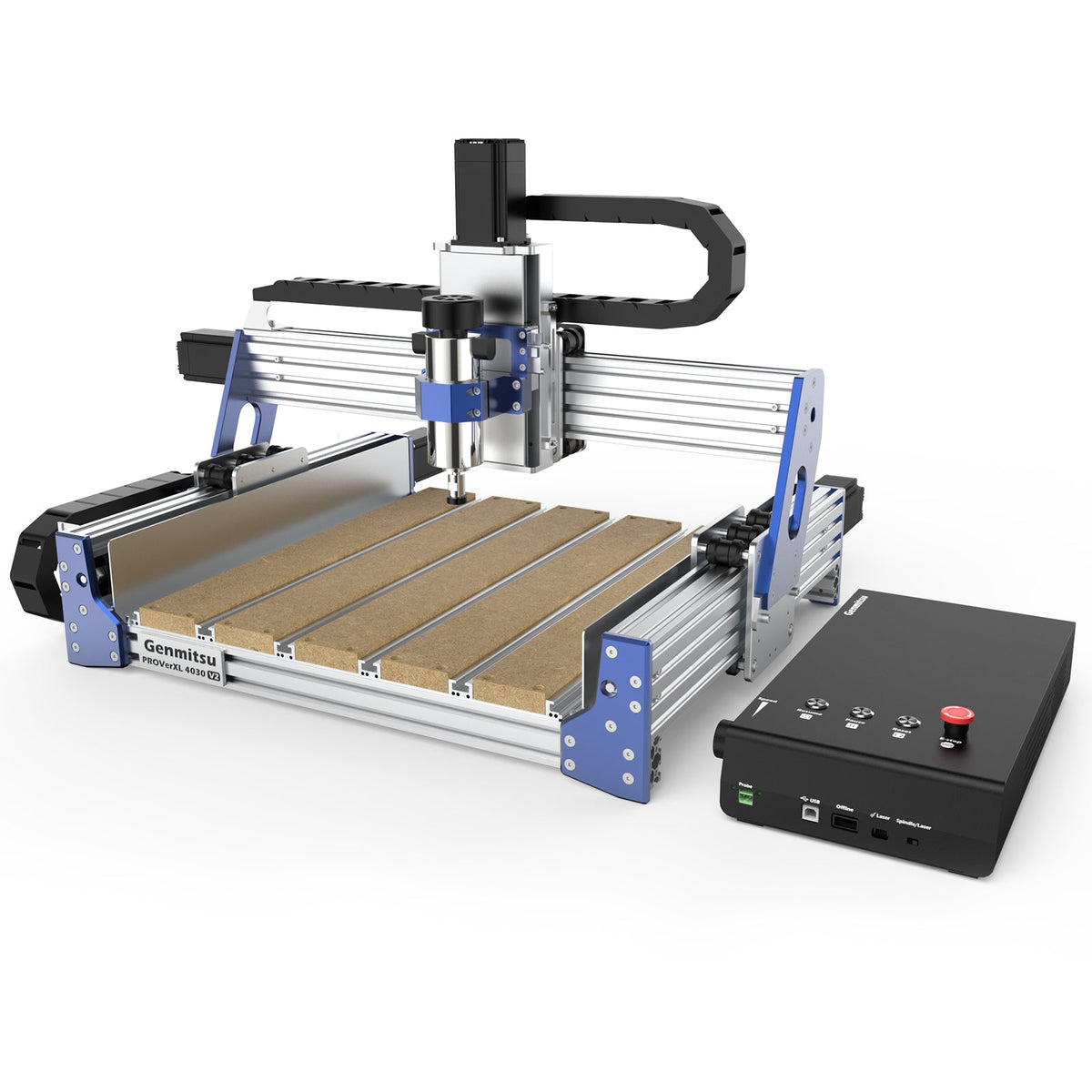

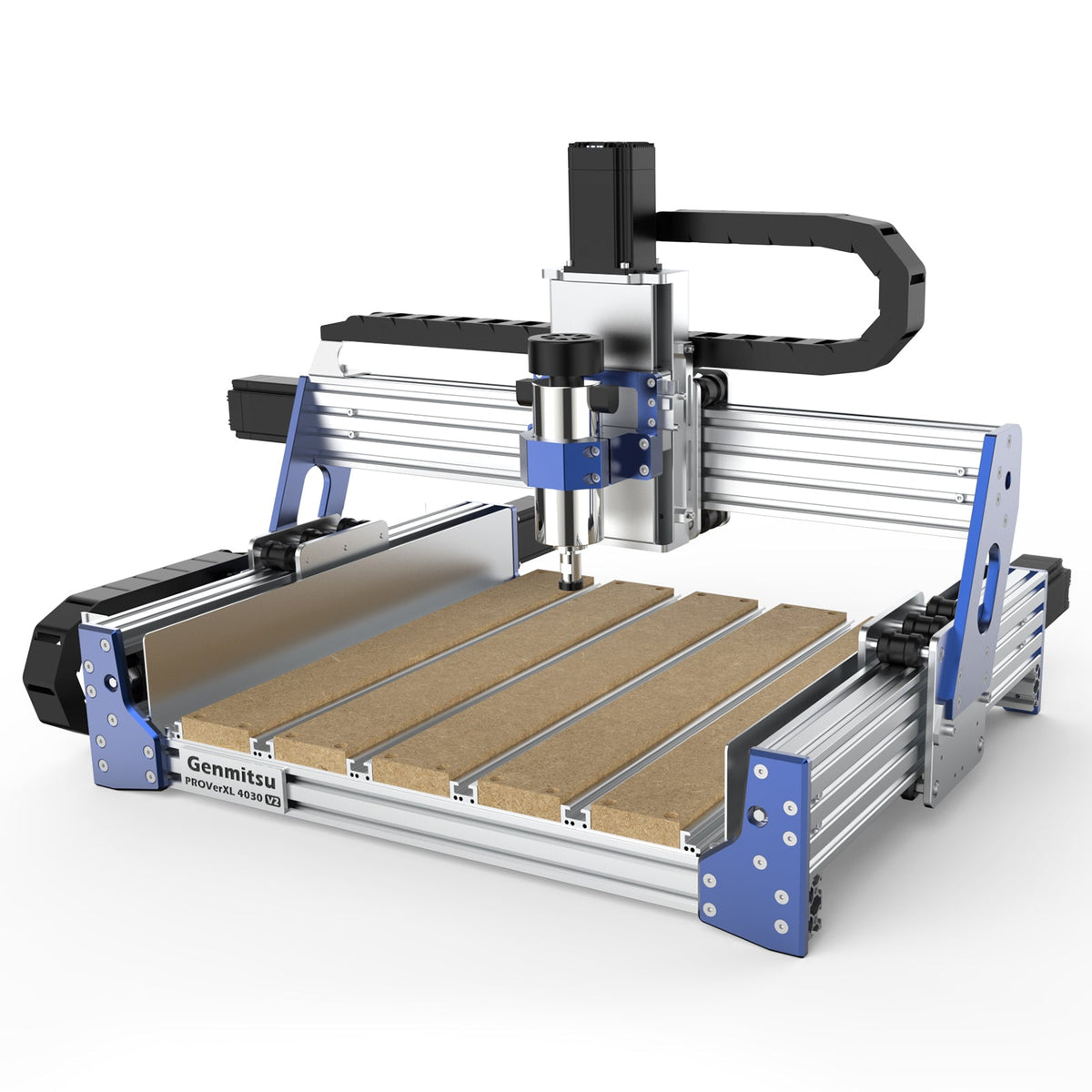

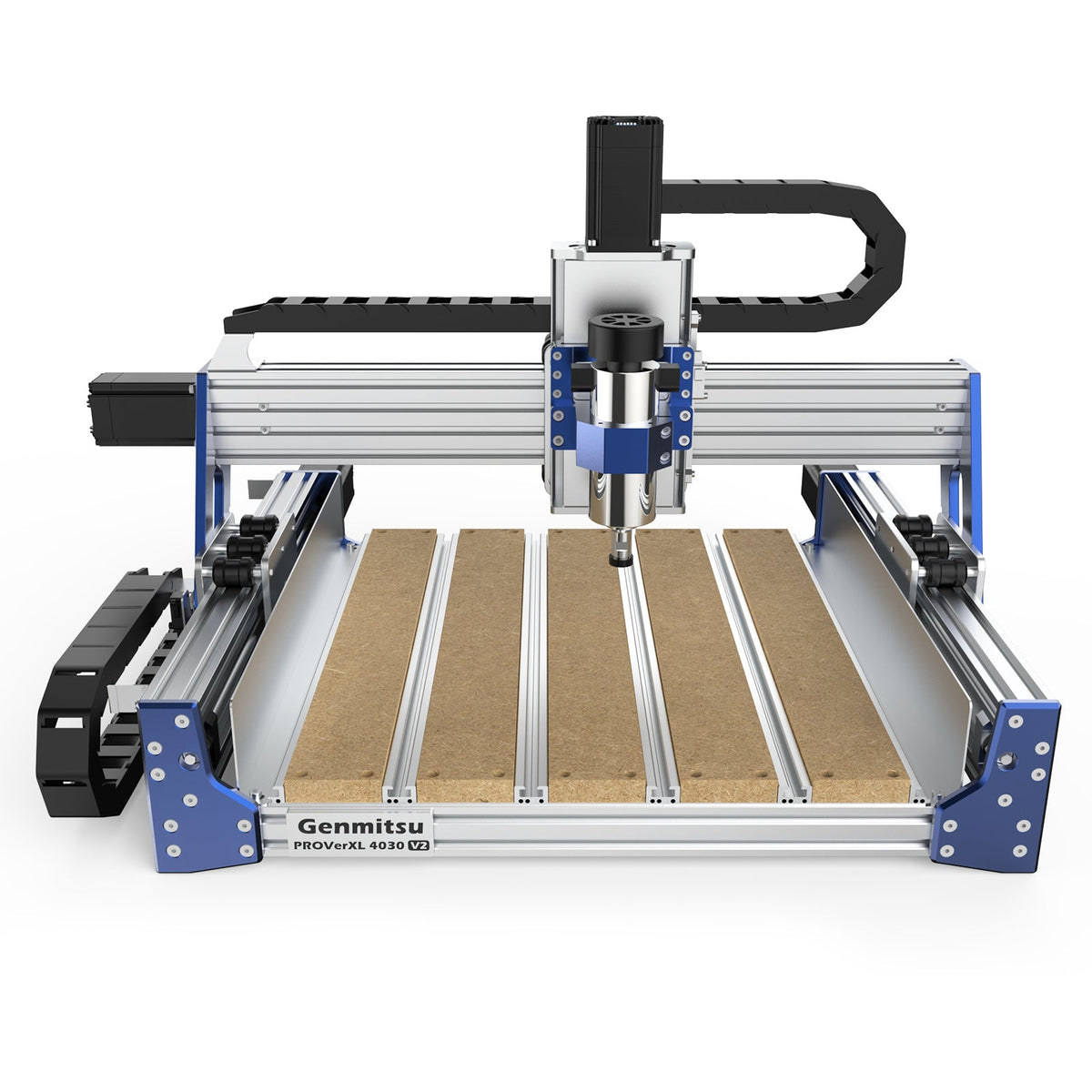

Genmitsu PROVerXL 4030 V2 CNC Router – Precision Cutting & Engraving with Closed-Loop Motors

Genmitsu PROVerXL 4030 V2 CNC Router – Precision Cutting & Engraving with Closed-Loop Motors

$1,199.00 USD
$1,399.00 USD $1,199.00 USD
Sale Sold out
Shipping calculated at checkout.
Overview ▾

Professional Precision. Compact Design. Unlimited Creativity.

Bring your creative ideas to life with the Genmitsu PROVerXL 4030 V2 CNC Router, a precision machining solution designed for makers, woodworking enthusiasts, and growing small businesses. Featuring upgraded closed-loop stepper motors, a precision ball screw drive system, and a sturdy metal frame, this versatile machine delivers smooth, accurate cutting, carving, and engraving for a wide range of custom projects.

With a generous 400 × 300mm working area, a powerful 400W spindle, and improved Z-axis stability, the PROVerXL 4030 V2 is built to handle everything from personalized signs and decorative woodworking to custom gifts, prototypes, and small-batch production. Its hybrid worktable and user-friendly GRBL-based control system make it a practical addition to any creative workshop.

Software Options: Available as a Machine Only package or bundled with Vectric VCarve Desktop software. VCarve Desktop is included only with the designated software bundle and is not included with the standard Machine Only configuration.



Videos
View full details
  • Features
  • Specs
  • Certification
  • User Manual
  • Precision 400 × 300mm Working Area: Ideal for small to medium-sized woodworking, engraving, and custom fabrication projects.

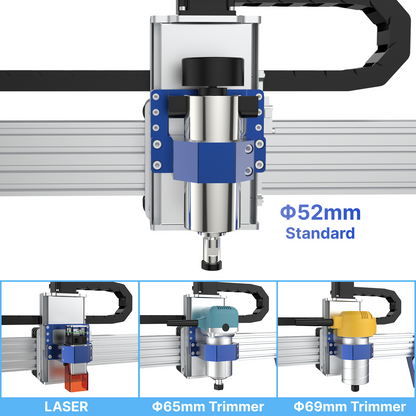

  • 400W Spindle: DC spindle rated for up to 10,000 RPM, providing cutting and engraving capabilities for compatible materials.

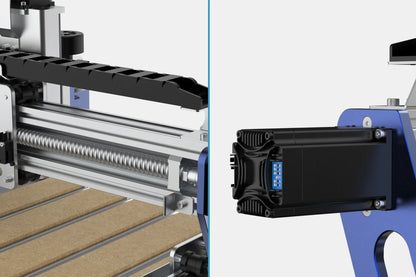

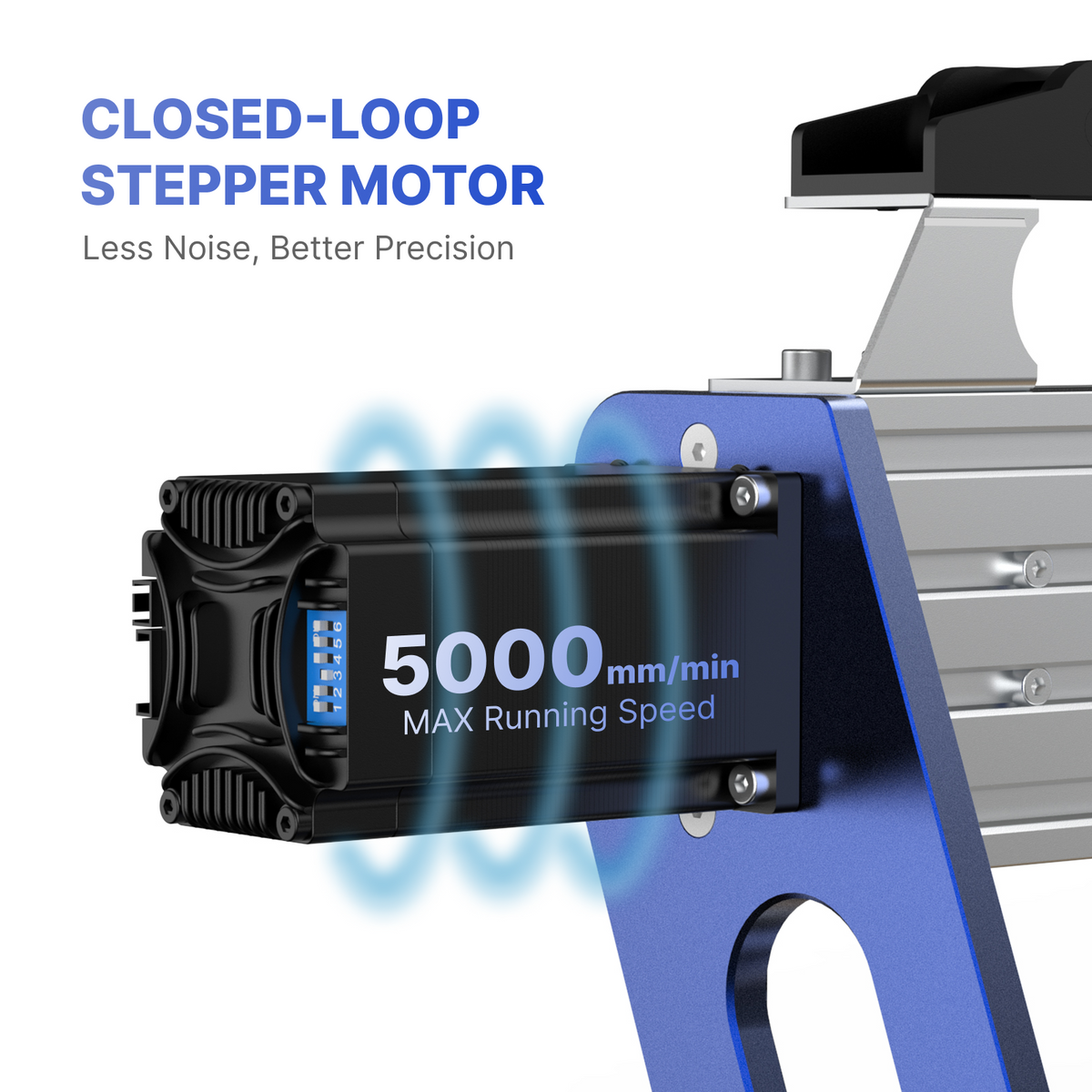

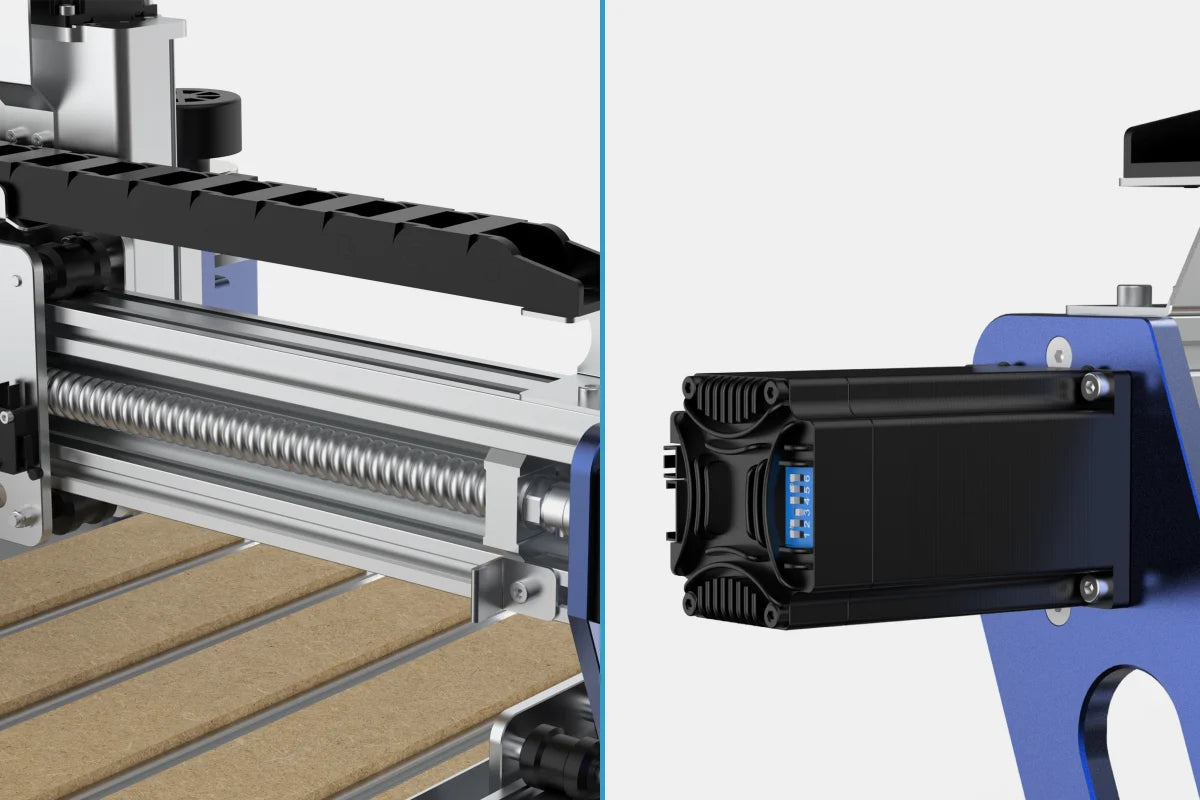

  • Closed-Loop Stepper Motors: Upgraded NEMA 23 motors use position feedback to help minimize missed steps and improve machining reliability.

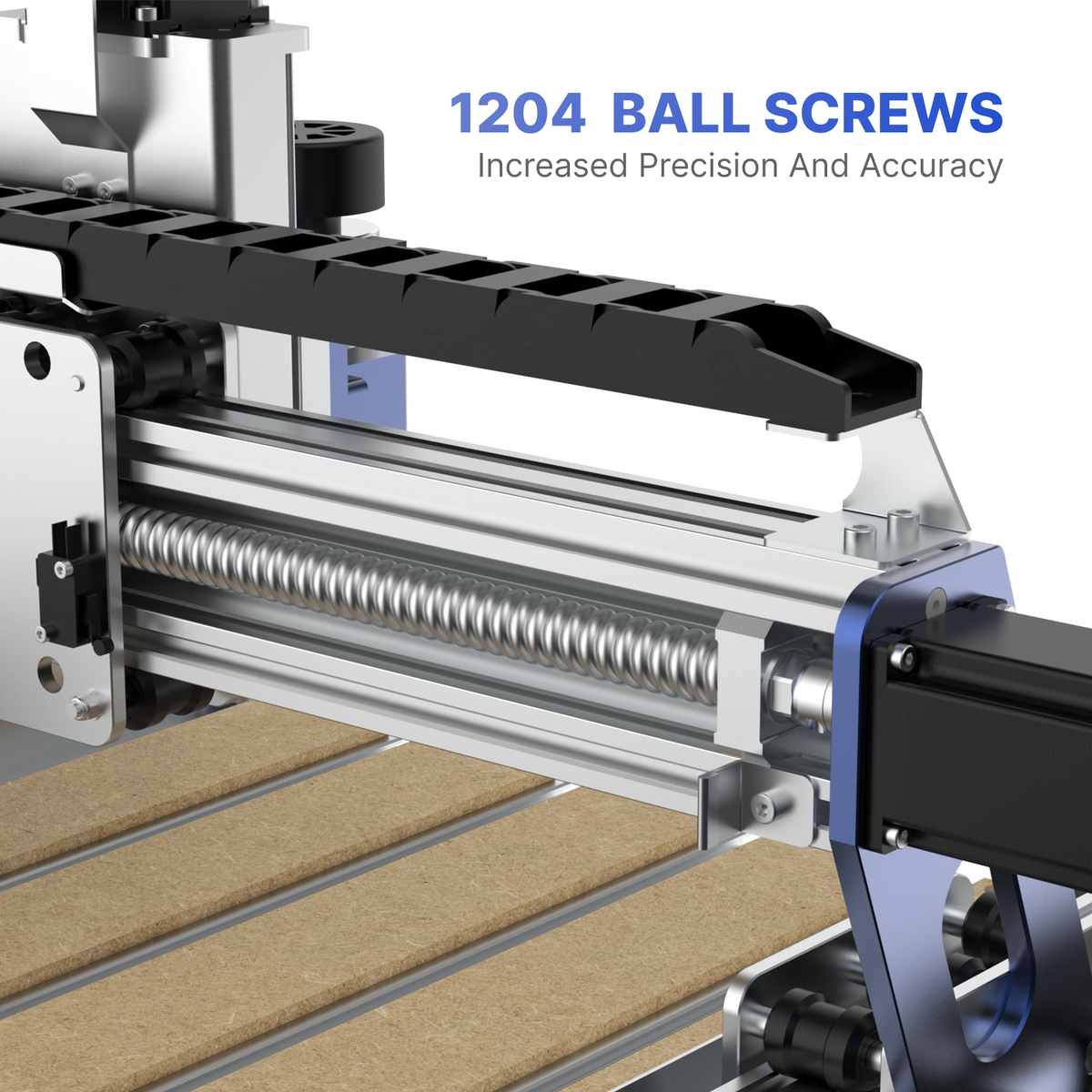

  • 1204 Ball Screw Drive System: Precision ball screws support smoother movement, greater accuracy, and consistent cutting performance.
  • High-Speed Operation: Maximum travel speed of 5,000mm/min helps improve workflow efficiency.
  • Improved Z-Axis Stability: Reinforced Z-axis structure provides added rigidity for detailed machining.
  • Sturdy Metal Frame: Durable construction supports stable cutting and carving operations.

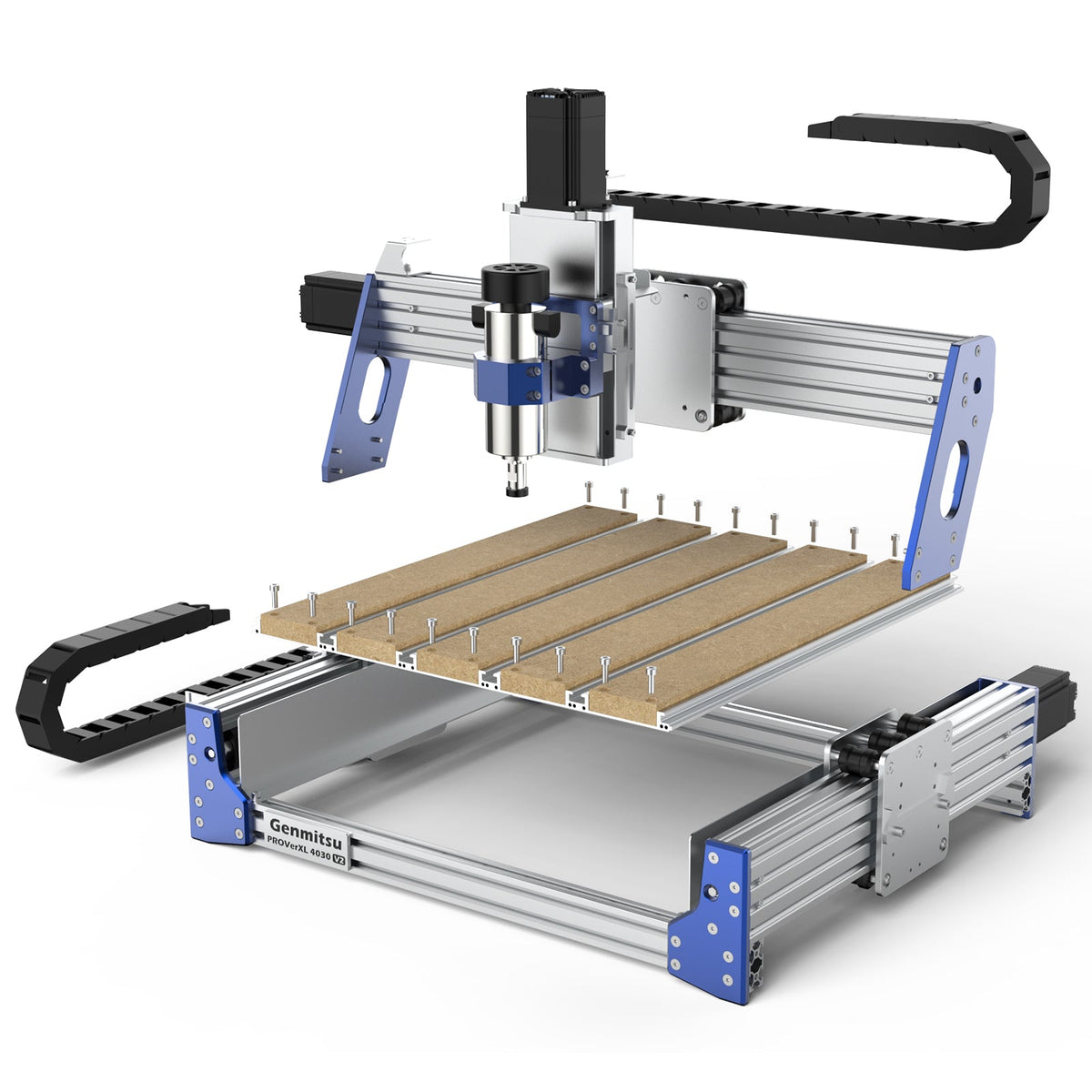

  • Hybrid T-Slot Worktable: Combines aluminum T-slot tracks with a replaceable spoilboard for convenient material mounting.

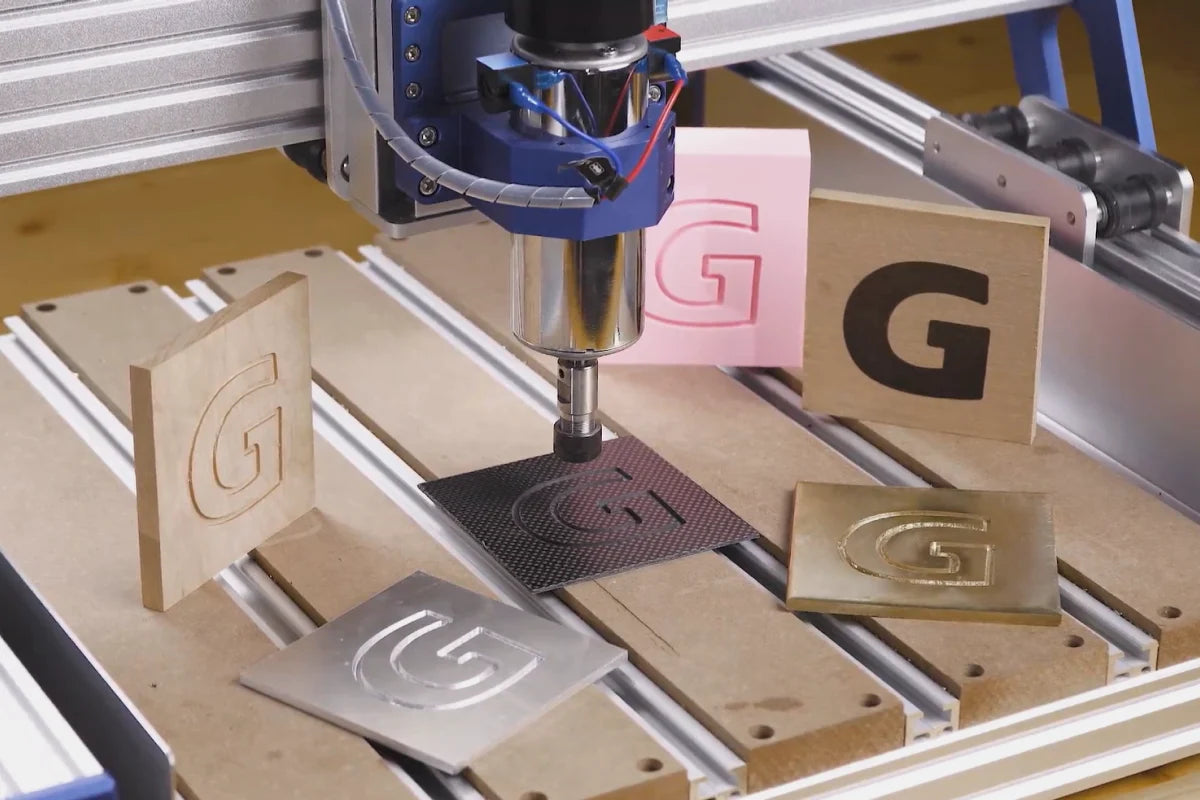

  • Versatile Material Compatibility: Suitable for machining wood, plastics, and compatible soft metals with appropriate tooling.

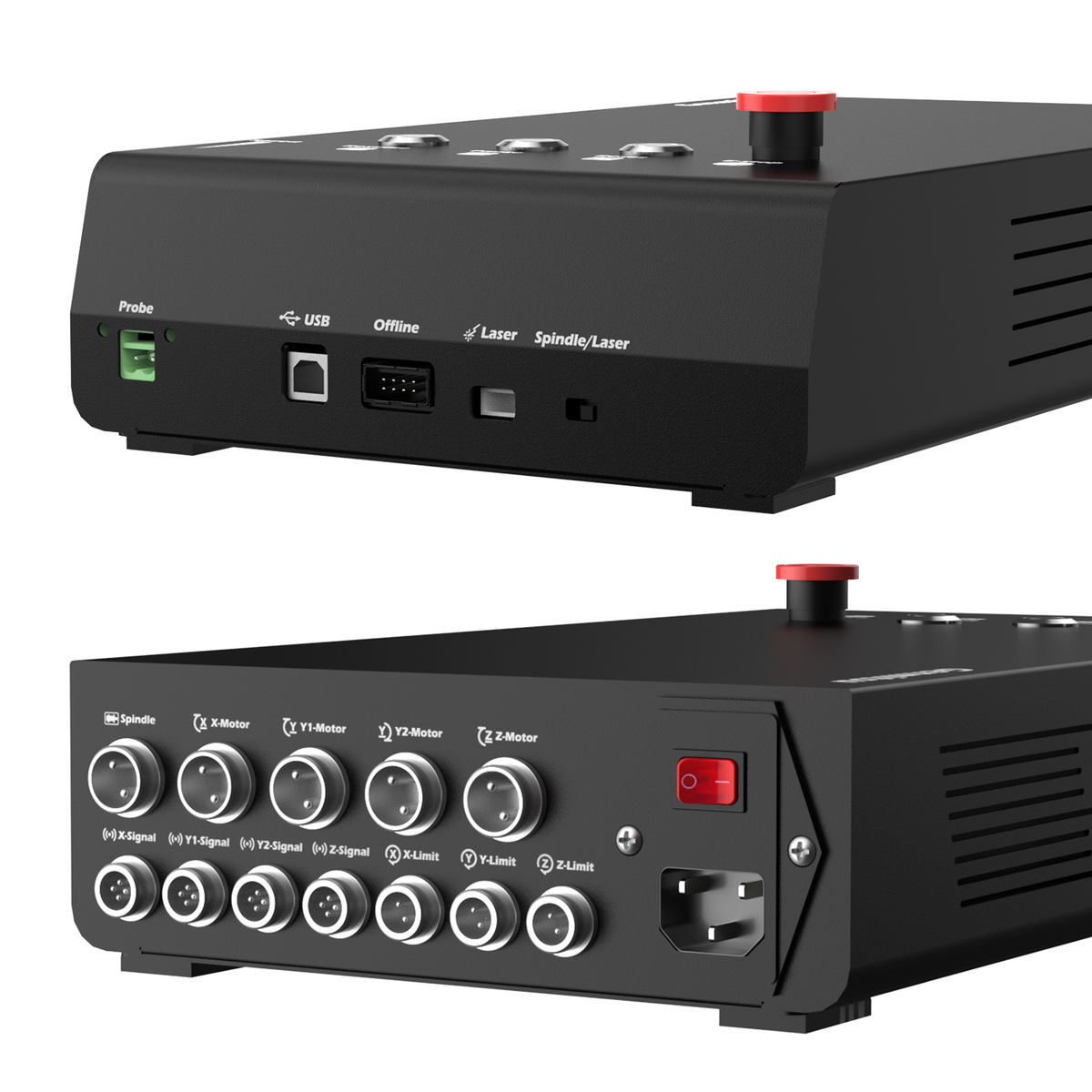

  • GRBL-Based Control System: Compatible with popular CNC control programs, including Candle and Universal Gcode Sender.
  • USB Connectivity: Connect to a compatible computer for machine control.
  • Expandable Working Area: Compatible with expansion options designed specifically for the 4030 V2.
  • Optional Rotary Engraving: Supports a separately available rotary axis accessory for cylindrical carving projects.
  • Optional Vectric Software Bundle: Select configurations include VCarve Desktop for CNC design and toolpath creation.
  • Creative Business Applications: Ideal for personalized products, custom signs, decorative pieces, prototypes, and small-batch manufacturing.
  • Product Name: Genmitsu PROVerXL 4030 V2 CNC Router
  • Brand: Genmitsu
  • Model: PROVerXL 4030 V2
  • Machine Type: Desktop CNC Router / Cutting & Engraving Machine

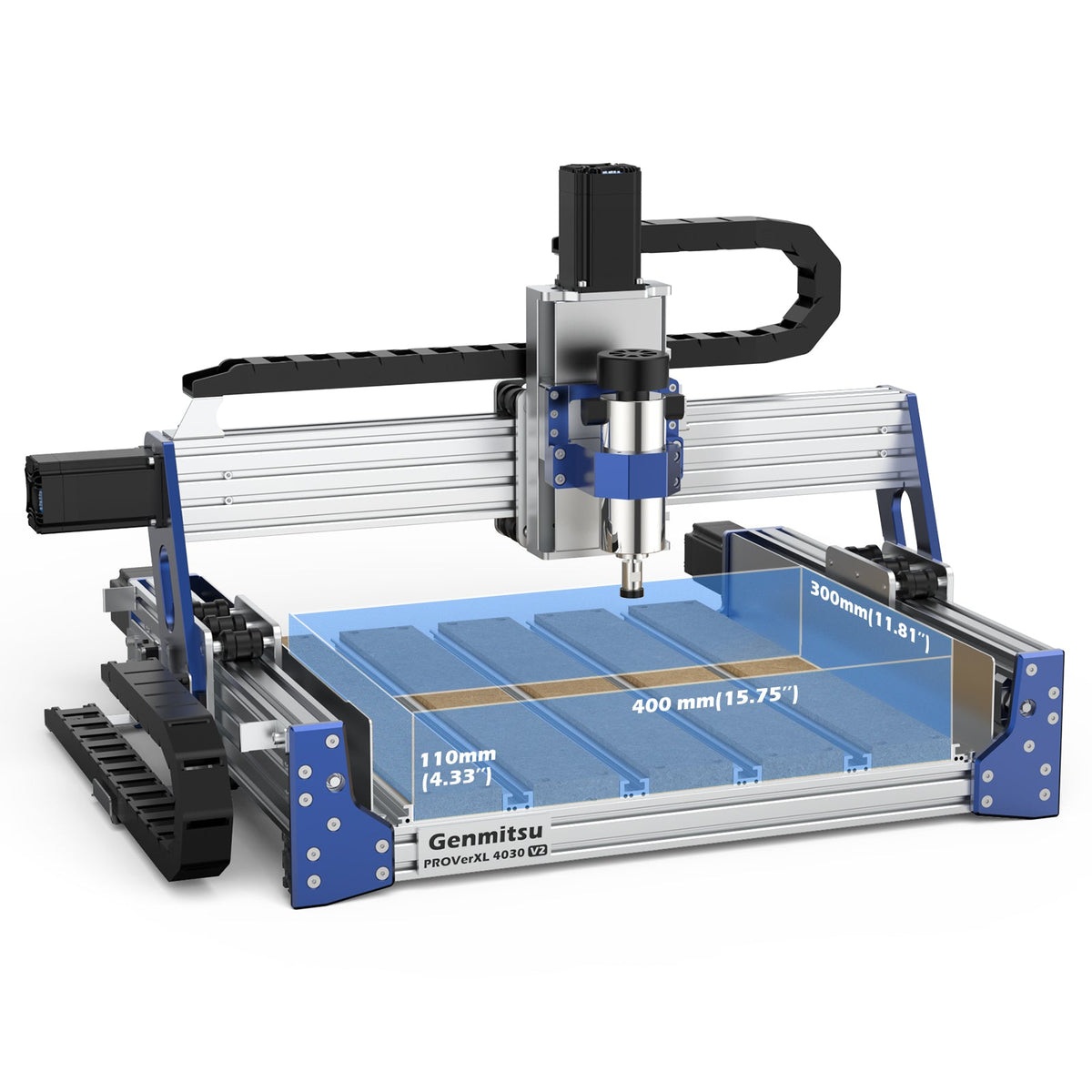

  • Working Area: 400 × 300 × 110mm (15.75" × 11.81" × 4.33")
  • Overall Dimensions: Approximately 742 × 605 × 489mm (29.2" × 23.8" × 19.3")
  • Spindle Power: Up to 400W
  • Maximum Spindle Speed: 10,000 RPM
  • Spindle Voltage: DC 0–48V Adjustable
  • Frame Construction: Metal Frame
  • Worktable: Hybrid T-Slot Table with Spoilboard
  • Drive System: 1204 Ball Screws
  • X/Y Axis Transmission: 1204 Ball Screws
  • Z-Axis Transmission: 12mm Linear Shaft and 1204 Ball Screw
  • Stepper Motors: NEMA 23, 76mm Closed-Loop
  • Motor Torque: 2.2 N·m
  • Stepper Driver: WSD6056DN56
  • Maximum Travel Speed: 5,000mm/min
  • Running Accuracy: Circular ≤ ±0.05mm / Rectangular ≤ ±0.02mm
  • Repositioning Accuracy: ≤ ±0.05mm

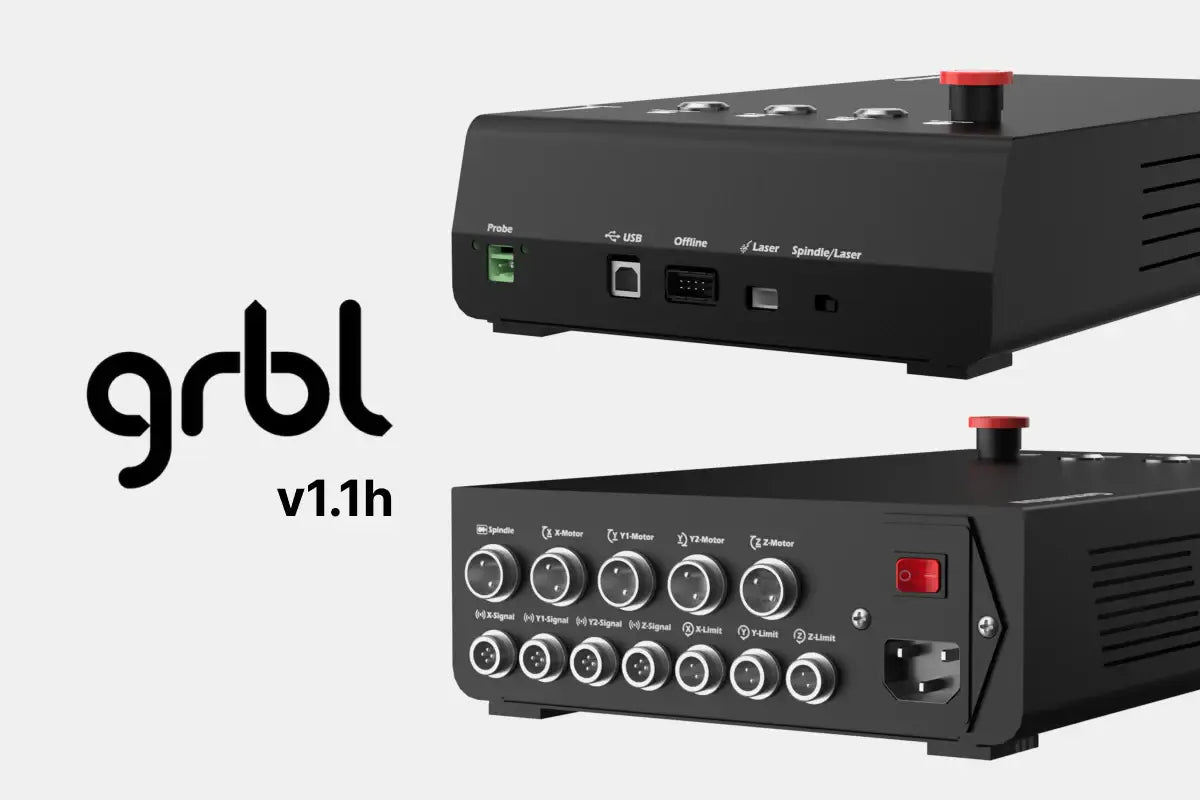

  • Control Board Compatibility: GRBL 1.1h
  • Control Software: Candle / Universal Gcode Sender
  • Connection Type: USB
  • Power Supply: 48V 7A and 24V 8A
  • Compatible Materials: Wood, Plastics, and Compatible Soft Metals
  • Estimated Assembly Time: 25–30 Minutes
  • Rotary Axis Compatibility: Optional Accessory, Sold Separately
  • Vectric Software: VCarve Desktop Available with Selected Bundle
  • Available Packages: Machine Only / Machine + VCarve Desktop
  • USA Machine-Only SKU: 101-60-XL4030V2-A
  • USA VCarve Desktop Bundle SKU: 101-60-XL4030V2V-A
